Pod & Rail Machines
Pod Machines for Joinery & Single Part Processing including Door Manufacture.The pod and rail system is ideally suited to the furniture maker, joiner and fitters. It is also used for door production. The system allows for pieces to be cut one at a time. It has a flat bed with suction cups to hold onto the pieces as the machine turns around the part adding the machining for your panel fittings, drawer sliders, hinges etc. We offer the Vega Series and Vega Ultra series giving you the broadest range of sizes and fittings.
We provide a range of software products, which work in harmony with the CNC machine to provide powerful, yet simple-to-use software solutions from basic proto-typing capabilities through to automated nesting solutions. Regardless of the software package you choose, CSL can provide the software training and support, customized to your needs. CSL provide a complete on-site installation and training service, including machine and tooling setup, and comprehensive software training. Call us: (+353)028-27666 or email: sales@csltool.comA Comprehensive Solution for CNC based manufacturing
We offer a series of custom solutions based on customer specific requirements. This typically includes a CNC router, a tailored software solution, with the appropriate tooling and training.

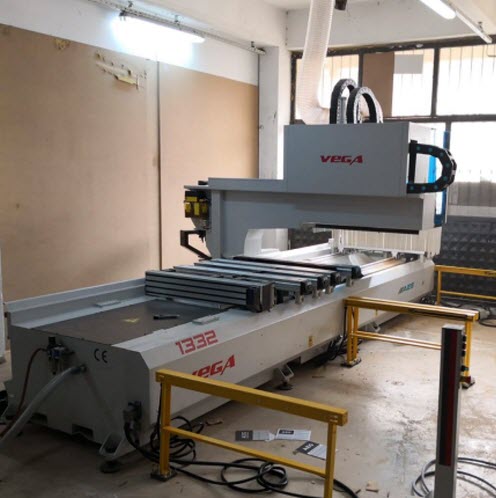

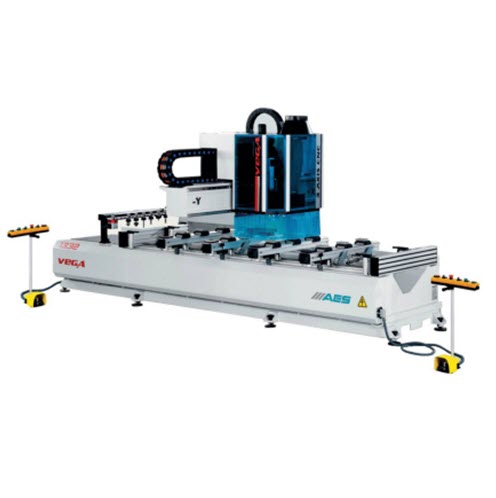

The Vega Pod & Rail CNC Machine.
The Vega is the workhorse for joiners and component manufacturers. It comes in a range of five sizes from 2.5 metres up to a 6 metre long model ideally suited for stair production. It has 10 independently controlled face drills, a grooving saw in the X direction, drills all 4 sides and has a 9Kw HSD router head complete with linear tool changer. With its 9kW HSK F63 connection, the state-of-the-art spindle motor allows you to get excellent results in your routing applications, including 3D machining. With optional 4-axis configuration, you can customize your processing on a single machine. It offers excellent value and versatility. Connect with one of our CNC expert today to find out how we can help you get the set up you need

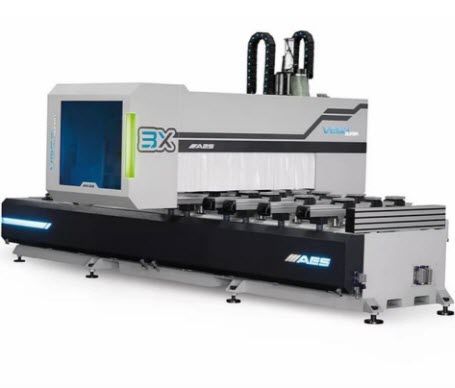

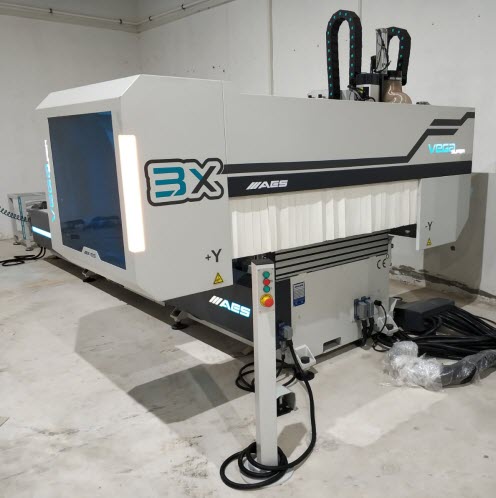

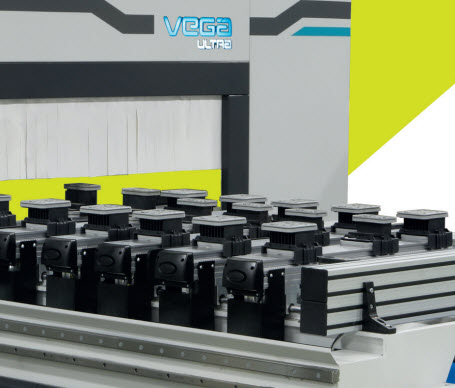

The Vega Ultra Pod & Rail CNC Machine
The Vega Ultra is the latest edition to the range. In addition to all the standard spec of the Vega, this machine boasts additional features to increase productivity and efficiency. It has a double bed of 300mm in the Z-axis versus the 200mm bed in the Vega. It has a Linear Tool Change unity with 14 tool changes (8 in Vega) to minimise interruption for tool change and increase potential processes within a single application. Finally it has a increased processing speed from 70 m/min to 90/min The Vega Ultra guarantees high performance for your woodworking applications. It provides optimum processing for creative results and high level usage. It can be used for door, window, furniture, kitchen and bathroom equipment applications. . The generously equipped machine is available with different bed sizes and can work as either a single or multi zone machine for enhanced productivity.

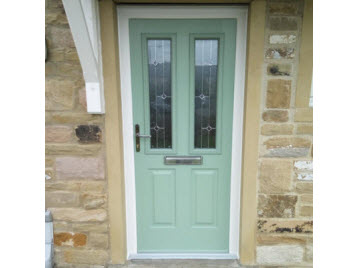

Machines for Door Manufacture

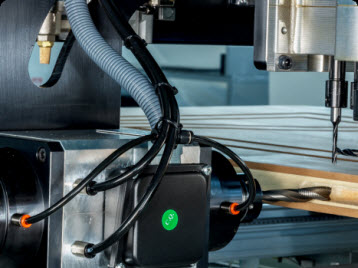

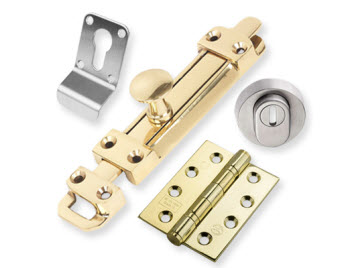

The Vega CNC router has a dedicated double ended horizontally mounted router head to cut the mortise for the lock and recess for the hinges. Our software application gives final sizing, mortising for the lock, recessing for the hinges with cut outs for spy holes, letterboxes and vision panels as required. With its powerful body, extensive tooling options and high speed production the Vega series will product ready for hard-ware doors in no time at all. We are also suppliers of door hardware so we can offer you a complete one stop solution for your door manufacturing process.
