Rip Saw Blade for Portable Saw 235mm Diameter 290.235.24M

Rip Saw Blade for Portable Saw 235mm Diameter 290.235.24M

Rip Saw Blade for Portable Saw 235mm Diameter 290.235.24M

Product Description

Application: For ripping hardwood and softwood along the grain.
Machines: For portable hand held saws.
Features: Tooth design greatly reduces the liklihood of material kick back.
See listing below for all diameters available for this Blade type.

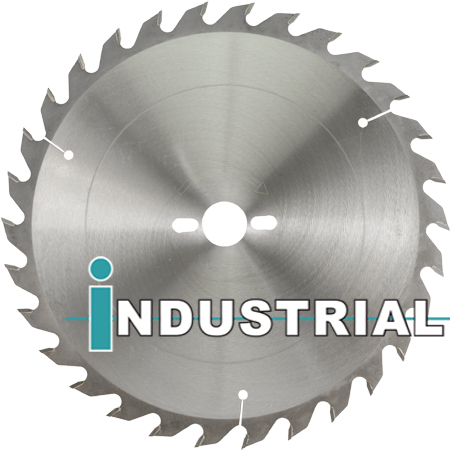

image represents product group.

Product Details

In Stock Available to Order
Product Code D (mm) B (mm) Z Pin Hole K (mm) P (mm) a g
290.235.24M 235 30 24 2/7/42 2.8 1.8 20 deg 10 deg ATB
Market Price Our Price 2-4 5+ Add To Cart
49.51 34.66 32.93 31.19
Features of Carbide Teeth:
- Teeth height: 6 - 8mm
- CHROMIUM Grade ISO: K10.
- Hardness (HV10): 1.765
- Transverse rupture strength (N/mm2): 2.150

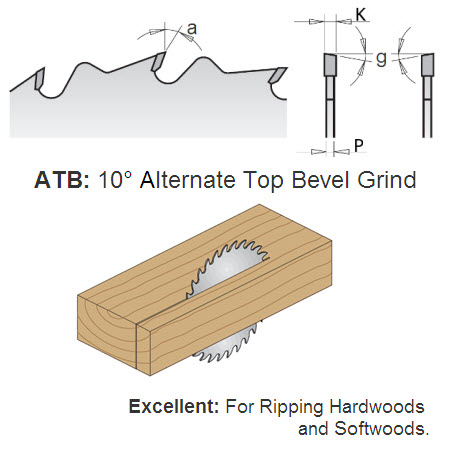

- Grind: ATB 10 deg. = Alternate Top Bevel
Code Specifications Pricing Buy
Product Code D (mm) B (mm) Z Pin Hole K (mm) P (mm) a g Market Price Our Price 2 - 5 5+ Add to CartDetails
150 20 12 None 2.4 1.4 20 deg 10 deg ATB €26.71 €18.70 €17.76 €16.83
View Details
160 16 12 None 2.2 1.6 20 deg 10 deg ATB €26.71 €18.70 €17.76 €16.83
View Details
160 20 12 2/6/32 2.2 1.6 20 deg 10 deg ATB €30.71 €21.50 €20.42 €19.35
View Details
180 30 12 2/7/42 2.6 1.6 20 deg 10 deg ATB €28.29 €19.80 €18.81 €17.82
View Details
190 16 12 2/6/32 2.6 1.6 20 deg 10 deg ATB €30.61 €21.43 €20.36 €19.28
View Details
190 20 12 2/6/32 2.6 1.6 20 deg 10 deg ATB €25.78 €18.04 €17.14 €16.24
View Details
190 30 12 2/7/42 2.6 1.6 20 deg 10 deg ATB €30.24 €21.17 €20.11 €19.05
View Details
200 30 24 2/7/42 2.8 1.8 20 deg 10 deg ATB €40.37 €28.26 €26.84 €25.43
View Details
210 30 24 2/7/42 2.8 1.8 20 deg 10 deg ATB €42.44 €29.71 €28.22 €26.74
View Details
220 30 24 2/7/42 2.8 1.8 20 deg 10 deg ATB €46.95 €32.87 €31.22 €29.58
View Details
230 30 24 2/7/42 2.8 1.8 20 deg 10 deg ATB €48.90 €34.23 €32.52 €30.81
View Details
235 25 24 None 2.8 1.8 20 deg 10 deg ATB €40.44 €28.31 €26.90 €25.48
View Details
235 30 24 2/7/42 2.8 1.8 20 deg 10 deg ATB €49.51 €34.66 €32.93 €31.19
View Details
240 30 24 2/7/42 2.8 1.8 20 deg 10 deg ATB €50.73 €35.51 €33.74 €31.96
View Details
250 30 24 COMBI3 2.8 1.8 20 deg 10 deg ATB €52.56 €36.79 €34.95 €33.11
View Details
270 30 28 2/7/42 2.8 1.8 20 deg 10 deg ATB €70.61 €49.43 €46.96 €44.48
View Details
