Diamond Conical Scoring Blade for Panel Saw 120mm Diameter 238.120.24H

Diamond Conical Scoring Blade for Panel Saw 120mm Diameter 238.120.24H

Diamond Conical Scoring Blade for Panel Saw 120mm Diameter 238.120.24H

Product Description

Application: For chip free scoring on melamine and laminated panels.
Machines: Table/Panel Saws, equipted with a scoring device.
Materials: Single or double-sided plastic-laminated and melamine panels.
See listing below for all diameters available for this Blade type.

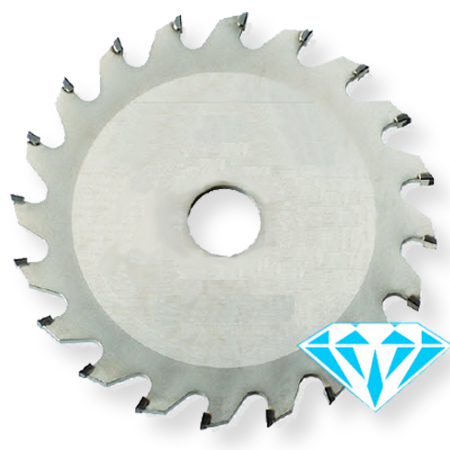

image represents product group.

Product Details

In Stock Available to Order
Product Code Grade D (mm) B (mm) Z K (mm) P (mm) a g
238.120.20H Xtreme 120 20 20 3.1-3.7 2.5 5 deg. CONICAL
Market Price Our Price 2-4 5+ Add To Cart
€512.20 €225.37 €214.10 €202.83
Features of Diamond Teeth:
- Diamond height: 4mm
- Grade ISO: 2um.
- Hardness (HV10): 10.000

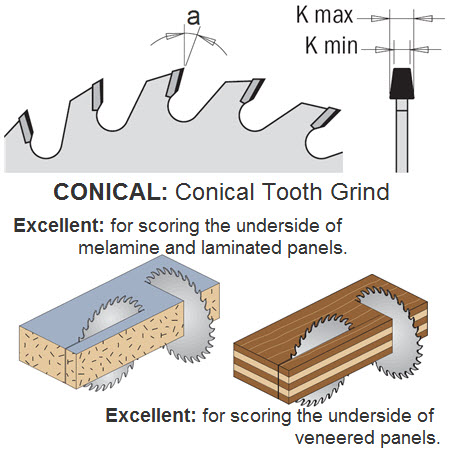

- Grind: Conical allowing for variable cutting widths.
- Can be sharpened up to 6 times.
Code Specifications Pricing Buy
Product Code Grade D (mm) B (mm) Z K (mm) P (mm) a g Market Price Our Price 2 - 5 5+ Add to CartDetails
238.120.20H
Diamond Conical Scoring Blade for Panel Saw 120mm Diameter 238.120.24H

Diamond Conical Scoring Blade for Panel Saw 120mm Diameter 238.120.24H

View Details
Xtreme 120 20 20 3.1-3.7 2.5 5 deg. CONICAL €512.20 €225.37 €214.10 €202.83
View Details
238.120.20H-SP
Diamond Conical Scoring Blade for Panel Saw 120mm Diameter 238.120.24H-SP

Diamond Conical Scoring Blade for Panel Saw 120mm Diameter 238.120.24H-SP

View Details
Xtreme 120 22 20 3.1-3.7 2.5 5 deg. CONICAL €553.17 €243.40 €231.23 €219.06
View Details
238.125.20H
Diamond Conical Scoring Blade for Panel Saw 125mm Diameter 238.125.24H

Diamond Conical Scoring Blade for Panel Saw 125mm Diameter 238.125.24H

View Details
Xtreme 125 20 20 3.1-3.7 2.5 5 deg. CONICAL €512.20 €225.37 €214.10 €202.83
View Details
238.125.20H-SP
Diamond Conical Scoring Blade for Panel Saw 125mm Diameter 238.125.24H-SP

Diamond Conical Scoring Blade for Panel Saw 125mm Diameter 238.125.24H-SP

View Details
Xtreme 125 22 20 3.1-3.7 2.5 5 deg. CONICAL €553.17 €243.40 €231.23 €219.06
View Details
