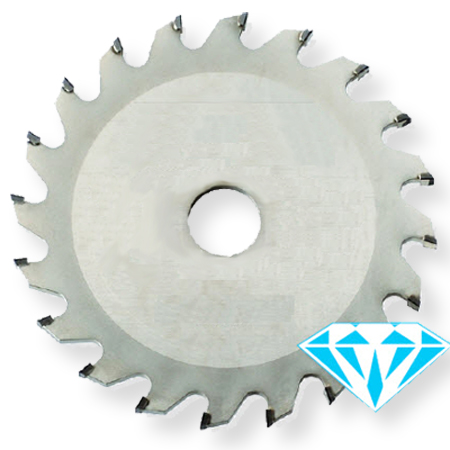

Diamond Conical Scoring Blade for Panel Saw 120mm Diameter 238.120.24H-SP

Diamond Conical Scoring Blade for Panel Saw 120mm Diameter 238.120.24H-SP

Diamond Conical Scoring Blade for Panel Saw 120mm Diameter 238.120.24H-SP

Product Description

Application: For chip free scoring on melamine and laminated panels.
Machines: Table/Panel Saws, equipted with a scoring device.
Materials: Single or double-sided plastic-laminated and melamine panels.
See listing below for all diameters available for this Blade type.
image represents product group.

Product Details

Not in Stock Available to Order
Product Code Grade D (mm) B (mm) Z K (mm) P (mm) a g
238.120.20H-SP Xtreme 120 22 20 3.1-3.7 2.5 5 deg. CONICAL
Market Price Our Price 2-4 5+ Add To Cart
553.17 243.40 231.23 219.06
Features of Diamond Teeth:
- Diamond height: 4mm
- Grade ISO: 2um.
- Hardness (HV10): 10.000

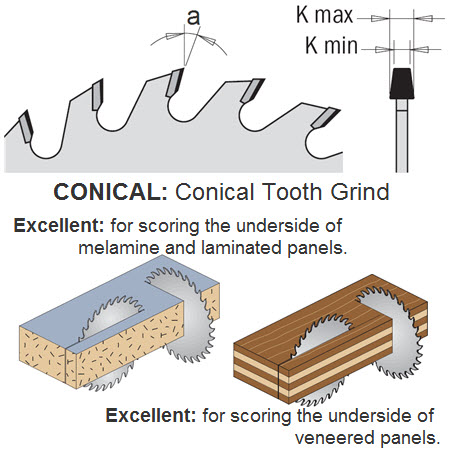

- Grind: Conical allowing for variable cutting widths.
- Can be sharpened up to 6 times.
Code Specifications Pricing Buy
Product Code Grade D (mm) B (mm) Z K (mm) P (mm) a g Market Price Our Price 2 - 5 5+ Add to CartDetails
Xtreme 120 20 20 3.1-3.7 2.5 5 deg. CONICAL €512.20 €225.37 €214.10 €202.83
View Details
Xtreme 120 22 20 3.1-3.7 2.5 5 deg. CONICAL €553.17 €243.40 €231.23 €219.06
View Details
Xtreme 125 20 20 3.1-3.7 2.5 5 deg. CONICAL €512.20 €225.37 €214.10 €202.83
View Details
Xtreme 125 22 20 3.1-3.7 2.5 5 deg. CONICAL €553.17 €243.40 €231.23 €219.06
View Details
