Conical Scoring Blade for Beam Saw 160mm DiameterY288.160.36O2

Product Description

Application: For chip free scoring on melamine and laminated panels.
Machines: Table/Panel Saws, equipted with a scoring device.
Materials: Single or double-sided plastic-laminated and melamine panels.
See listing below for all diameters available for this Blade type.

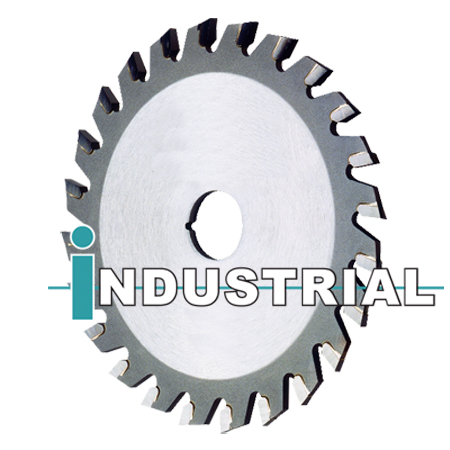

image represents product group.

Product Details

Not in Stock Available to Order

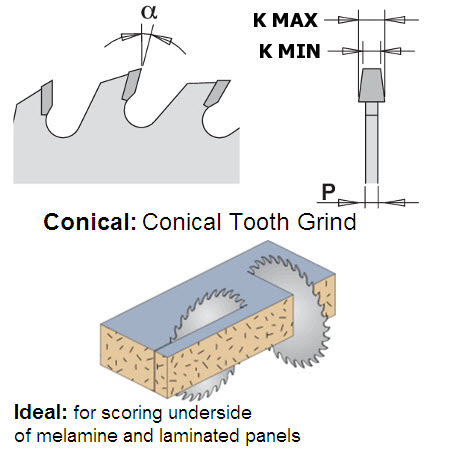

Product Code	D (mm)	B (mm)	Z	Pin Hole	K (mm)	P (mm)	a	g
Y288.160.36O2	160	55	36	3/7/66 + 3/6/84	4.7-6.0	3.5	10 deg.	CONICAL

Market Price	Our Price	2-4	5+	Add To Cart
€130.56	€82.25	€78.14	€74.03

Features of Carbide Teeth:
- Teeth height: 8-10mm
- Grade ISO: KCR05.
- Hardness (HV10): 2.150
- Transverse rupture strength (N/mm2): 2.500
- Grind CO+FTG = Conical with Flat Top Grind

Description
Product List
Also Bought

Code	Specifications								Pricing				Buy
Product Code	D (mm)	B (mm)	Z	Pin Hole	K (mm)	P (mm)	a	g	Market Price	Our Price	2 - 5	5+	Add to CartDetails
288.150.36Q Conical Scoring Blade for Beam Saw 150mm Diameter 288.150.36Q View Details	150	45	36	No Pins	4.3-5.5	3.2	10 deg.	CONICAL	€143.54	€90.43	€85.91	€81.39	View Details
288.160.36Q Conical Scoring Blade for Beam Saw 160mm Diameter 288.160.36Q View Details	160	45	36	3/11/70	4.3-5.5	3.2	10 deg.	CONICAL	€156.59	€98.65	€93.72	€88.78	View Details
288.160.36O Conical Scoring Blade for Beam Saw 160mm Diameter 288.160.36O View Details	160	55	36	3/7/66	4.3-5.5	3.2	10 deg.	CONICAL	€156.59	€98.65	€93.72	€88.78	View Details
Y288.160.36O2 Conical Scoring Blade for Beam Saw 160mm DiameterY288.160.36O2 View Details	160	55	36	3/7/66 + 3/6/84	4.7-6.0	3.5	10 deg.	CONICAL	€130.56	€82.25	€78.14	€74.03	View Details
Y288.180.36H Conical Scoring Blade for Beam Saw 180mm DiameterY288.180.36H View Details	180	20	36	No Pins	4.3-5.5	3.2	10 deg.	CONICAL	€162.55	€102.40	€97.28	€92.16	View Details
288.180.36M Conical Scoring Blade for Beam Saw 180mm Diameter 288.180.36M View Details	180	30	36	No Pins	4.3-5.5	3.2	10 deg.	CONICAL	€175.12	€110.33	€104.81	€99.29	View Details
288.180.36Q Conical Scoring Blade for Beam Saw 180mm Diameter 288.180.36Q View Details	180	45	36	No Pins	4.7-6.0	3.5	10 deg.	CONICAL	€176.59	€111.25	€105.69	€100.12	View Details
288.180.36O Conical Scoring Blade for Beam Saw 180mm Diameter 288.180.36O View Details	180	55	36	No Pins	5.0-6.2	3.5	10 deg.	CONICAL	€135.11	€85.12	€80.86	€76.61	View Details
288.180.44T Conical Scoring Blade for Beam Saw 180mm Diameter 288.180.44T View Details	180	50	44	3/12.5/80	4.3-5.5	3.2	10 deg.	CONICAL	€190.12	€119.78	€113.79	€107.80	View Details
288.200.36H Conical Scoring Blade for Beam Saw 200mm Diameter 288.200.36H View Details	200	20	36	No Pins	4.3-5.5	3.2	10 deg.	CONICAL	€172.20	€108.48	€103.06	€97.63	View Details
288.200.36Q Conical Scoring Blade for Beam Saw 200mm Diameter 288.200.36Q View Details	200	45	36	No Pins	4.7-6.0	3.5	10 deg.	CONICAL	€179.39	€113.02	€107.37	€101.71	View Details
Y288.200.36Q2 Conical Scoring Blade for Beam Saw 200mm DiameterY288.200.36Q2 View Details	200	45	36	No Pins	4.3-5.5	3.2	10 deg.	CONICAL	€181.46	€114.32	€108.61	€102.89	View Details
288.200.36J Conical Scoring Blade for Beam Saw 200mm Diameter 288.200.36J View Details	200	65	36	2/9/100 + 2/9/110	4.3-5.5	3.2	10 deg.	CONICAL	€176.59	€111.25	€105.69	€100.12	View Details
288.215.42T Conical Scoring Blade for Beam Saw 215mm Diameter 288.215.42T View Details	215	50	42	3/15/80	4.3-5.5	3.2	10 deg.	CONICAL	€186.95	€117.78	€111.89	€106.00	View Details
288.300.48T Conical Scoring Blade for Beam Saw 300mm Diameter 288.300.48T View Details	300	50	48	3/15/80	4.3-5.5	3.2	10 deg.	CONICAL	€314.02	€197.84	€187.94	€178.05	View Details
288.300.72J Conical Scoring Blade for Beam Saw 300mm Diameter 288.300.72J View Details	300	65	72	2/9/100 + 2/9/110	4.3-5.5	3.2	10 deg.	CONICAL	€352.44	€222.04	€210.93	€199.83	View Details
