9.52mm Right Hand Compression Spiral with smaller Upcut 190.513.11

9.52mm Right Hand Compression Spiral with smaller Upcut 190.513.11

9.52mm Right Hand Compression Spiral with smaller Upcut 190.513.11

Product Description

Application: Use at high feed speeds for perimeter cutting and morticing - Ideal tool for nested based manufacturing.
Machines: For use primarily on CNC routers, but can also be used on hand held machines.
Materials: With a short up cut this tool is ideal for machining thin sheet material including mdf and chipboard, plywood and laminated or melamine faced material.
See listing below for all sizes available for this cutter type.

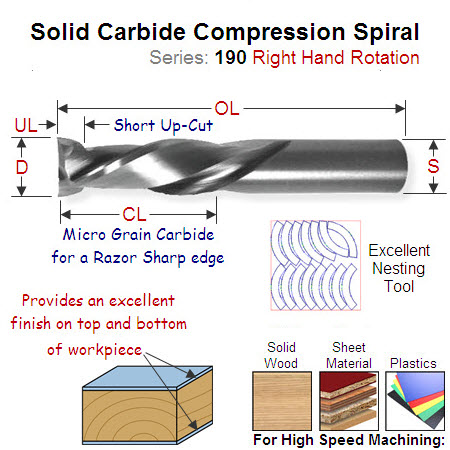

image represents product group.

Product Details

In Stock Available to Order
Product Code S D (mm) CL (mm) UL (mm) OL (mm) Z
190.513.11 9.52mm 9.52 22.2 4.8 76.2 2+2
Market Price Our Price 3-7 8+ Add To Cart
127.20 76.32 69.45 61.82
Code Specifications Pricing Buy
Product Code S D (mm) CL (mm) UL (mm) OL (mm) Z Market Price Our Price 3 - 8 8+ Add to CartDetails
9.52mm 9.52 22.2 4.8 76.2 2+2 €127.20 €76.32 €69.45 €61.82
View Details
9.52mm 9.52 25.4 5.2 76.2 3+3 €146.83 €95.44 €86.85 €77.31
View Details
12mm 12 25 5.2 83 3+3 €189.88 €123.42 €112.31 €99.97
View Details
1/2" 12.7 22.2 5.2 76.2 2+2 €162.32 €97.39 €88.63 €78.89
View Details
1/2" 12.7 34.9 5.2 88.9 2+2 €188.78 €122.71 €111.66 €99.39
View Details
