13 pcs. Multiprofile Set A with 100mm Dia. 30mm Bore Head without Limiters 692.013.02

13 pcs. Multiprofile Set A with 100mm Dia. 30mm Bore Head without Limiters 692.013.02

13 pcs. Multiprofile Set A with 100mm Dia. 30mm Bore Head without Limiters 692.013.02

Product Description

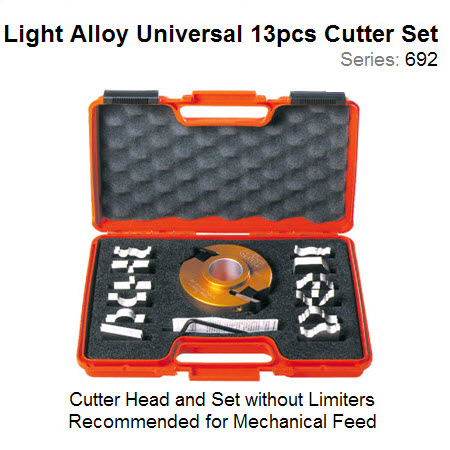

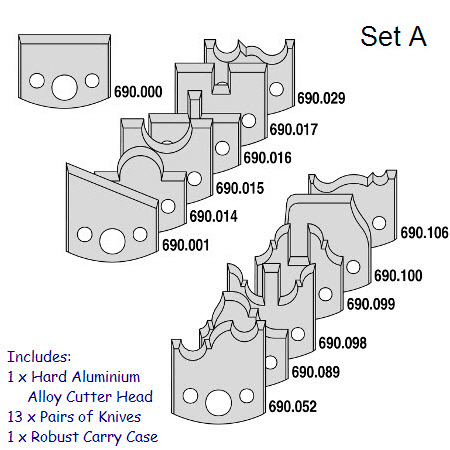

Application: 13pcs. Set A for producing solid wood doors with 2 door profile cutter sets, a raised panel set and a series of moulding sets.
Machines: For use primarily on spindle moulders but can also be used on cnc routers with the appropriate arbor.
Materials: Use on hardwoods, softwoods and plywood.
See listing below for all sizes available for this cutter head type.
Additional 40mm and 50mm Knives can be puchased in the Universal Knives and Limiters Section.
For Spare Parts select product from list and Click spare parts tab.
image represents product group.

Product Details

In Stock Available to Order

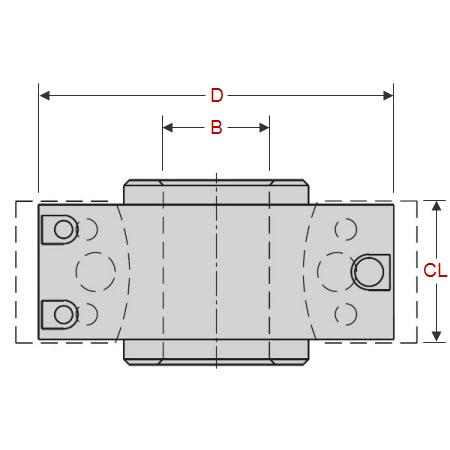

Product Code Set Type D (mm) B (mm) Body Type RPM CL (mm) Feed
692.013.02 13pcs. Set A 100mm 30mm Aluminium 5500-8400 40 & 50mm MEC
Market Price Our Price 2-4 5+ Add To Cart
458.90 275.34 261.57 247.81
Code Specifications Pricing Buy
Product Code Set Type D (mm) B (mm) Body Type RPM CL (mm) Feed Market Price Our Price 2 - 5 5+ Add to CartDetails
13pcs. Set A 78mm 19.05mm Aluminium 7000-9000 40mm MEC €452.32 €294.01 €279.31 €264.61
View Details
13pcs. Set A 78mm 30mm Aluminium 7000-9000 40mm MEC €452.32 €294.01 €279.31 €264.61
View Details
13pcs. Set A 100mm 25.4mm Aluminium 5500-8400 40 & 50mm MEC €458.90 €298.29 €283.37 €268.46
View Details
13pcs. Set A 100mm 30mm Aluminium 5500-8400 40 & 50mm MEC €458.90 €275.34 €261.57 €247.81
View Details
13pcs. Set A 100mm 31.75mm Aluminium 5500-8400 40 & 50mm MEC €458.90 €275.34 €261.57 €247.81
View Details
13pcs. Set A 100mm 35mm Aluminium 5500-8400 40 & 50mm MEC €458.90 €298.29 €283.37 €268.46
View Details
13pcs. Set A 120mm 50mm Aluminium 4800-7400 40 & 50mm MEC €458.90 €298.29 €283.37 €268.46
View Details
13pcs. Set B 78mm 19.05mm Aluminium 7000-9000 40mm MEC €452.32 €294.01 €279.31 €264.61
View Details
13pcs. Set B 78mm 30mm Aluminium 7000-9000 40mm MEC €452.32 €294.01 €279.31 €264.61
View Details
13pcs. Set B 100mm 25.4mm Aluminium 5500-8400 40 & 50mm MEC €458.90 €298.29 €283.37 €268.46
View Details
13pcs. Set B 100mm 30mm Aluminium 5500-8400 40 & 50mm MEC €458.90 €275.34 €261.57 €247.81
View Details
13pcs. Set B 100mm 31.75mm Aluminium 5500-8400 40 & 50mm MEC €458.90 €275.34 €261.57 €247.81
View Details
13pcs. Set B 100mm 35mm Aluminium 5500-8400 40 & 50mm MEC €458.90 €298.29 €283.37 €268.46
View Details
13pcs. Set B 120mm 50mm Aluminium 4800-7400 40 & 50mm MEC €458.90 €298.29 €283.37 €268.46
View Details
