120mmNegative Cut Saw Blade for Aluminium and Plastic 296.120.36H

120mmNegative Cut Saw Blade for Aluminium and Plastic 296.120.36H

120mmNegative Cut Saw Blade for Aluminium and Plastic 296.120.36H

Product Description

Application: For cutting profiles and solid sections of aluminium and plastic.
Machines: For use on portable saws, using the saw over the workpiece.
Materials: aluminium, brass, copper alloys, plastic composites and laminated panels.
See listing below for all diameters available for this Blade type.

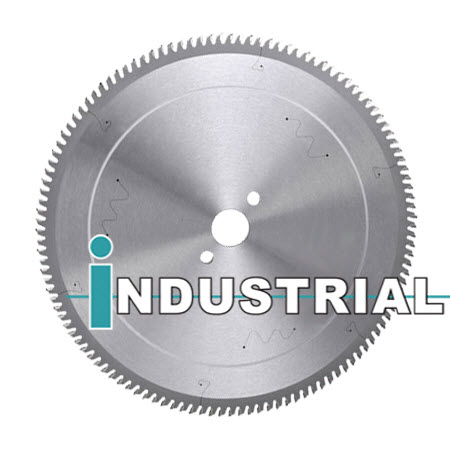

image represents product group.

Product Details

In Stock Available to Order
Product Code D (mm) B (mm) Z Pin Hole K (mm) P (mm) a g
296.120.36H 120 20 36 2/5.5/30 1.8 1.2 -6 deg. TCG
Market Price Our Price 2-4 5+ Add To Cart
58.90 37.11 35.25 33.40
Features of Carbide Teeth:
- Teeth height: 6mm
- Grade ISO: K10.
- Hardness (HV10): 1.765
- Transverse rupture strength (N/mm2): 2.150

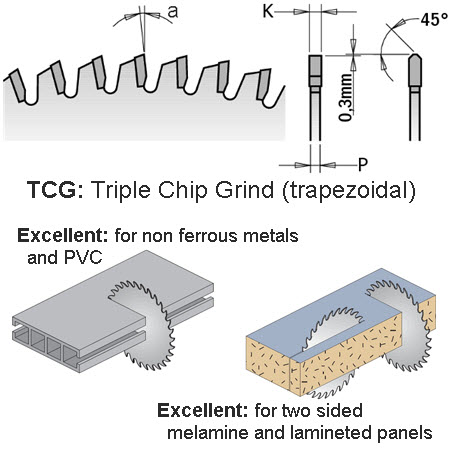

- Grind TGC = Negative Triple chip grind (trapezoidal)
Code Specifications Pricing Buy
Product Code D (mm) B (mm) Z Pin Hole K (mm) P (mm) a g Market Price Our Price 2 - 5 5+ Add to CartDetails
120 20 36 2/5.5/30 1.8 1.2 -6 deg. TCG €58.90 €37.11 €35.25 €33.40
View Details
160 20 40 2/6/32 2.2 1.6 -6 deg. TCG €47.44 €29.89 €28.39 €26.90
View Details
160 20 56 2/6/32 2.2 1.6 -6 deg. TCG €54.63 €34.42 €32.70 €30.98
View Details
180 20 40 2/6/32 2.8 2.2 -6 deg. TCG €59.76 €37.65 €35.76 €33.88
View Details
190 30 40 2/7/42 2.8 2.2 -6 deg. TCG €51.83 €32.65 €31.02 €29.39
View Details
190 30 64 2/7/42 2.8 2.2 -6 deg. TCG €71.46 €45.02 €42.77 €40.52
View Details
190 20 64 Key 5/7/2.5 2.8 2.2 -6 deg. TCG €90.18 €56.81 €53.97 €51.13
View Details
200 30 48 COMBI3 2.8 2.2 -6 deg. TCG €73.90 €46.56 €44.23 €41.90
View Details
210 30 48 2/7/42 2.8 2.2 -6 deg. TCG €73.90 €46.56 €44.23 €41.90
View Details
210 30 64 2/7/42 2.8 2.2 -6 deg. TCG €91.71 €57.78 €54.89 €52.00
View Details
216 30 64 None 2.8 2.2 -6 deg. TCG €96.34 €60.70 €57.66 €54.63
View Details
225 30 64 2/7/42 2.8 2.2 -6 deg. TCG €92.93 €58.54 €55.62 €52.69
View Details
230 30 48 2/7/42 2.8 2.2 -6 deg. TCG €80.49 €50.71 €48.17 €45.64
View Details
235 30 48 2/7/42 2.8 2.2 -6 deg. TCG €80.49 €50.71 €48.17 €45.64
View Details
